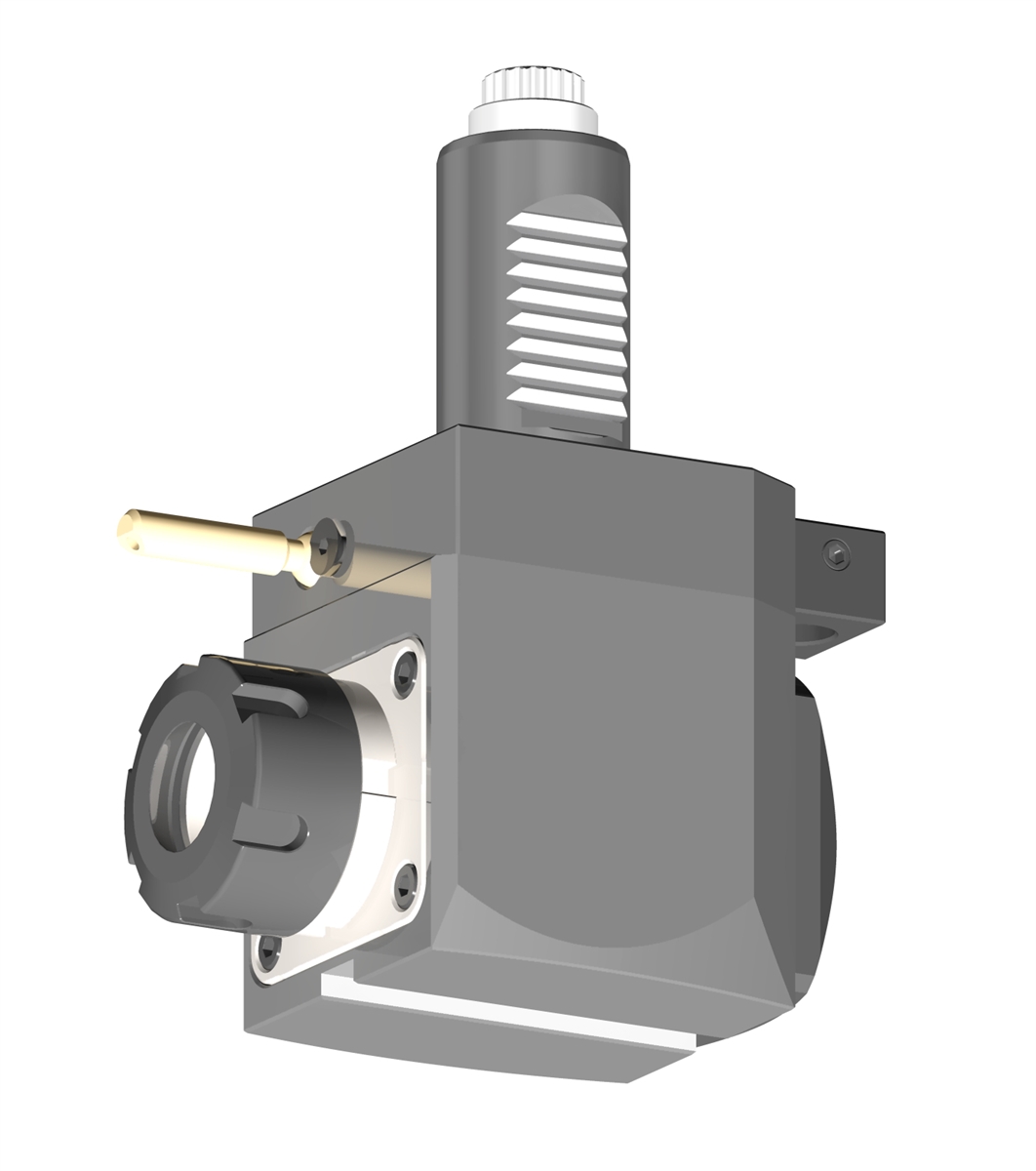

VDI 30, Angular Tool Holder, Sauter DIN 5480 Coupling, No Internal Cooling, Inverted Rotation - Left/55, ER25
Product Code: NGT-1-30-231-25-1-2-55
List Price: USD $3,368.66
Sale Price: USD $3,031.79
Savings: USD $336.87
Description
VDI Live Tool Holder, Inverted Rotation
Sauter DIN 5480
NGT-1-30-231-25-1-2-55
Micron Tooling
Live Tooling for CNC Lathe
Manufactured by Nova Grup SRL
Manufacturer's Warranty 1 Year including parts and service
Features
Each NGT Tool Holder must pass tests for heating, vibrations, noise level, tightness on checking stand and is given a running in. Each NGT product which will fit your CNC lathe turret passed a stringent final measurement of dimensional and functional parameters. Noise level is reduced because the cyclo-palloid gear wheels have had a thorough machining, a controlled heat treatment and a final lapping. Final Quality Control is performed on proper measuring devices and it is assured a documented Measuring Protocol for each Live Tool Holder, performed on a 3D measuring machine. Each product is accompanied by a Quality and Conformity Certificate and a Factory Warranty of 12 months. Repairs and/or maintenance after warranty are provided by Machine Impex Canada Inc.
| Product Code | NGT-1-30-231-25-1-2-55 |
| Coupling Type | DIN 5480 |
| Direction | Left |
| Tool Grip | ER25 |
| Internal Cooling | No |
| Weight | 4 Kg |
| Dimensions | |
| D | 30 |
| A | 55 |
| B | 48 |
| F | 63 |
| L | 55 |
| P | 56 |
| T | 29 |
| W | 64 |
ToolHolders produced by NOVA GRUP will fulfill your requirements for endurance, dimensional and functional precision. ToolHolders concept, materials and parts sustain a long range of tests on their functionality testing stands.
