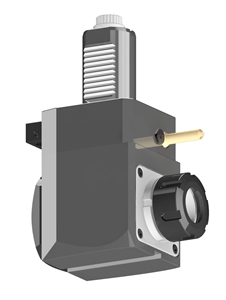

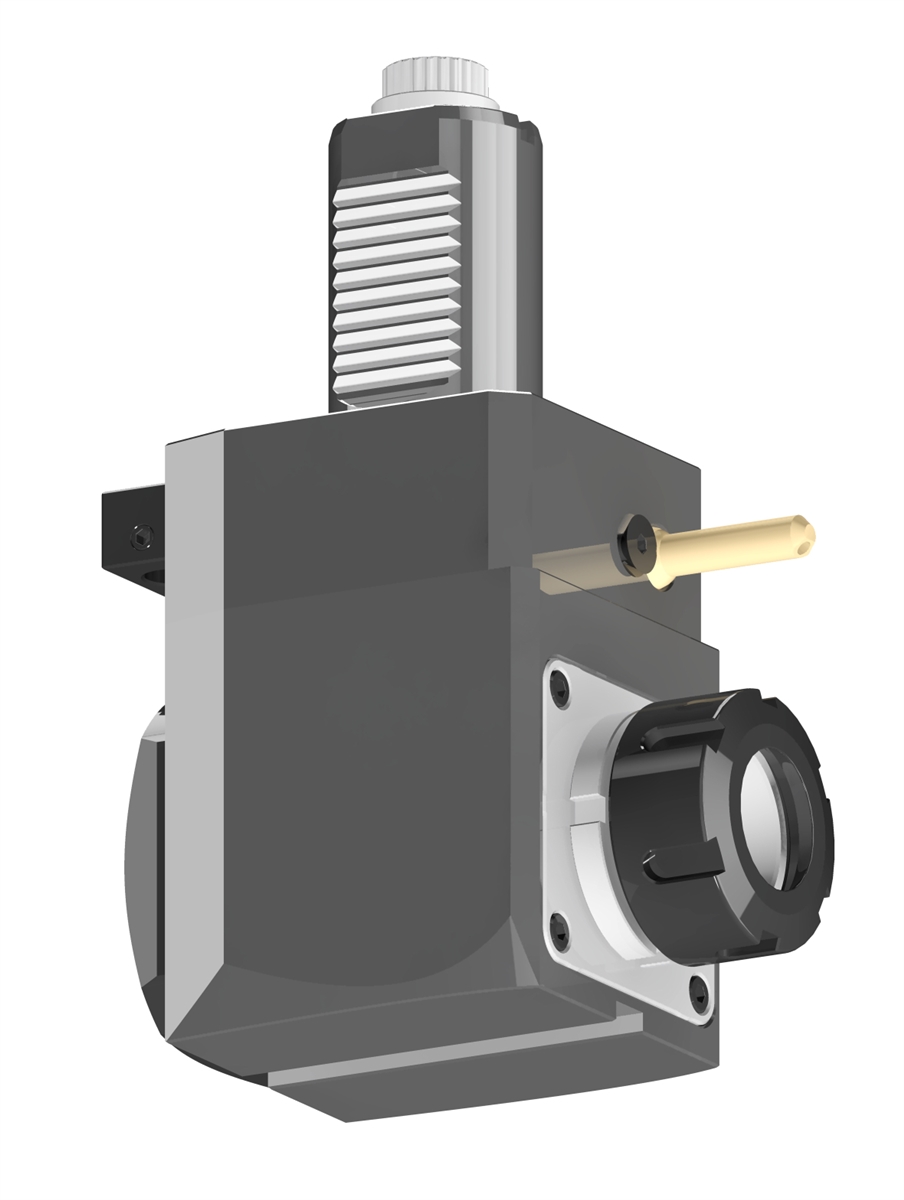

VDI 40, Angular Tool Holder, Sauter DIN 5480 Coupling, No Internal Cooling, Inverted Rotation - Right/80, ER32
Product Code: NGT-1-40-231-32-1-1-80
List Price: USD $3,464.80
Sale Price: USD $3,118.32
Savings: USD $346.48
Description
VDI Live Tool Holder, Inverted Rotation
Sauter DIN 5480
NGT-1-40-231-32-1-1-80
Micron Tooling
Live Tooling for CNC Lathe
Manufactured by Nova Grup SRL
Manufacturer's Warranty 1 Year including parts and service
Features
Each NGT Tool Holder must pass tests for heating, vibrations, noise level, tightness on checking stand and is given a running in. Each NGT product which will fit your CNC lathe turret passed a stringent final measurement of dimensional and functional parameters. Noise level is reduced because the cyclo-palloid gear wheels have had a thorough machining, a controlled heat treatment and a final lapping. Final Quality Control is performed on proper measuring devices and it is assured a documented Measuring Protocol for each Live Tool Holder, performed on a 3D measuring machine. Each product is accompanied by a Quality and Conformity Certificate and a Factory Warranty of 12 months. Repairs and/or maintenance after warranty are provided by Machine Impex Canada Inc.
| Product Code | NGT-1-40-231-32-1-1-80 |
| Coupling Type | DIN 5480 |
| Direction | Right |
| Tool Grip | ER32 |
| Internal Cooling | No |
| Weight | 6.5 Kg |
| Dimensions | |
| D | 40 |
| A | 80 |
| B | 59 |
| F | 74 |
| L | 63 |
| P | 65 |
| T | 36 |
| W | 75 |
ToolHolders produced by NOVA GRUP will fulfill your requirements for endurance, dimensional and functional precision. ToolHolders concept, materials and parts sustain a long range of tests on their functionality testing stands.
