Description

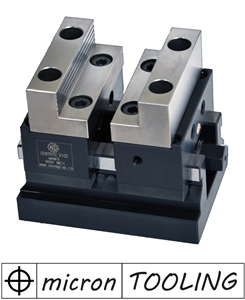

Self-centering Mechanical Precision Vise for CNC Milling Machines
NGV-MC-1
Micron Tooling
Manufactured by Nova Grup SRL
Manufacturer's Warranty 1 Year including parts and service
Features
Product Code | NGV-MC-1 |
Max. Force | 1000 kgf |
Max. Opening | 28 / 62 / 98 mm |
Clamping Jaws Width | 78 mm |
Maximum Clamping Travel | 90 mm |
Amplification | No |
Weight | 4 Kg |
Dimensions (mm) | (See product photos) |
A | 78 |
A1 | 60 |
H | 97 |
H1 | 80 |
H2 | 70 |
H3 | 67 |
H4 | 48 |
H5 | 4 |
L | 126 |
L1 | 110 |
L2 | 90 |
L3 | 98 |
L4 | 62 |
L5 | 28 |
NGV vises produced by NOVA GRUP can easily be used for both serial and one piece production.
