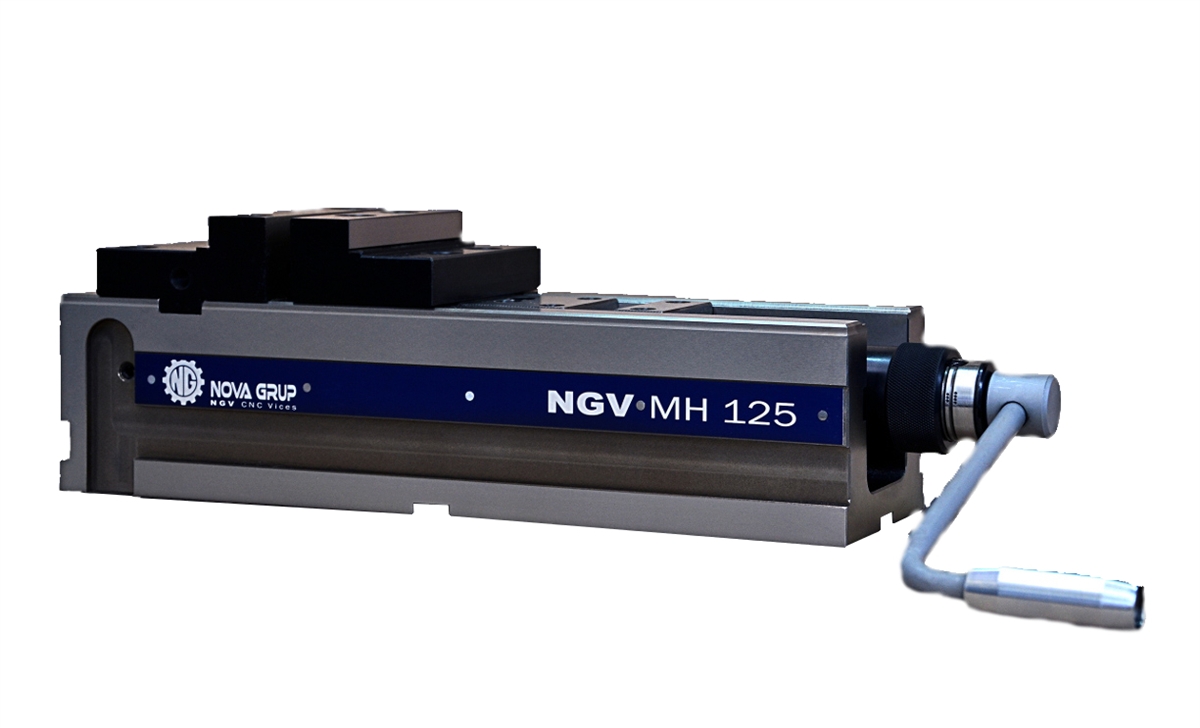

Mechano-Hydraulic Precision Vise for CNC Milling Machines with Force Regulator
Product Code: NGV-MH-125-SF
List Price: USD $5,025.50
Sale Price: USD $4,522.95
Savings: USD $502.55
Description
Mechano-Hydraulic Precision Vise for CNC Milling Machines with Force Regulator
NGV-MH-125-SF
Micron Tooling
Manufactured by Nova Grup SRL
Features
- For CNC milling machines or CNC milling centers
- High resistance globular cast iron body, GGG 60 type, with slideways ground and hardened, is ground on all sides.
- Hydraulic amplifying unit, with high quality sealing, ensures a time constant clamping force.
- Allows more versatile placing and fixing of pieces and uses a large selection of jaws.
- The main leading screw is completely insulated against machining chips.
- Made with slots and holes manufactured in close tolerances, for a repetitive and accurate positioning on machine working tables.
- Vice Force Regulator is included as standard and it allows the operator, once a force level has been set, to clamp the piece at the same repetitive force level.
- High precision clamping
| Product Code | NGV-MH-125-SF |
| Max. Force | 4000 kgf |
| Max. Opening | 335 mm |
| Clamping Jaws Width | 125 mm |
| Maximum Clamping Travel | 335 mm |
| Amplification | Hydraulic |
| Weight | 38 Kg |
| Dimensions (mm) | (See product photos) |
| A | 125 |
| A1 | 98 |
| A2 | 46 |
| H | 144 |
| H1 | 128 |
| H2 | 102 |
| H3 | 20 |
| H4 | 16 |
| L | 426 |
| L1 | 160 |
| L2 | 54 |
| L3 | 338 |
| L4 | 6 |
| L5 | 165 |
| L6 | 68 |
| L7 | 49 |
| L8 | 99 |
| L9 | 79 |
Vises produced by NOVA GRUP will fulfill your requirements for endurance, dimensional and functional precision.
NGV vises produced by NOVA GRUP can easily be used for both serial and one piece production.
