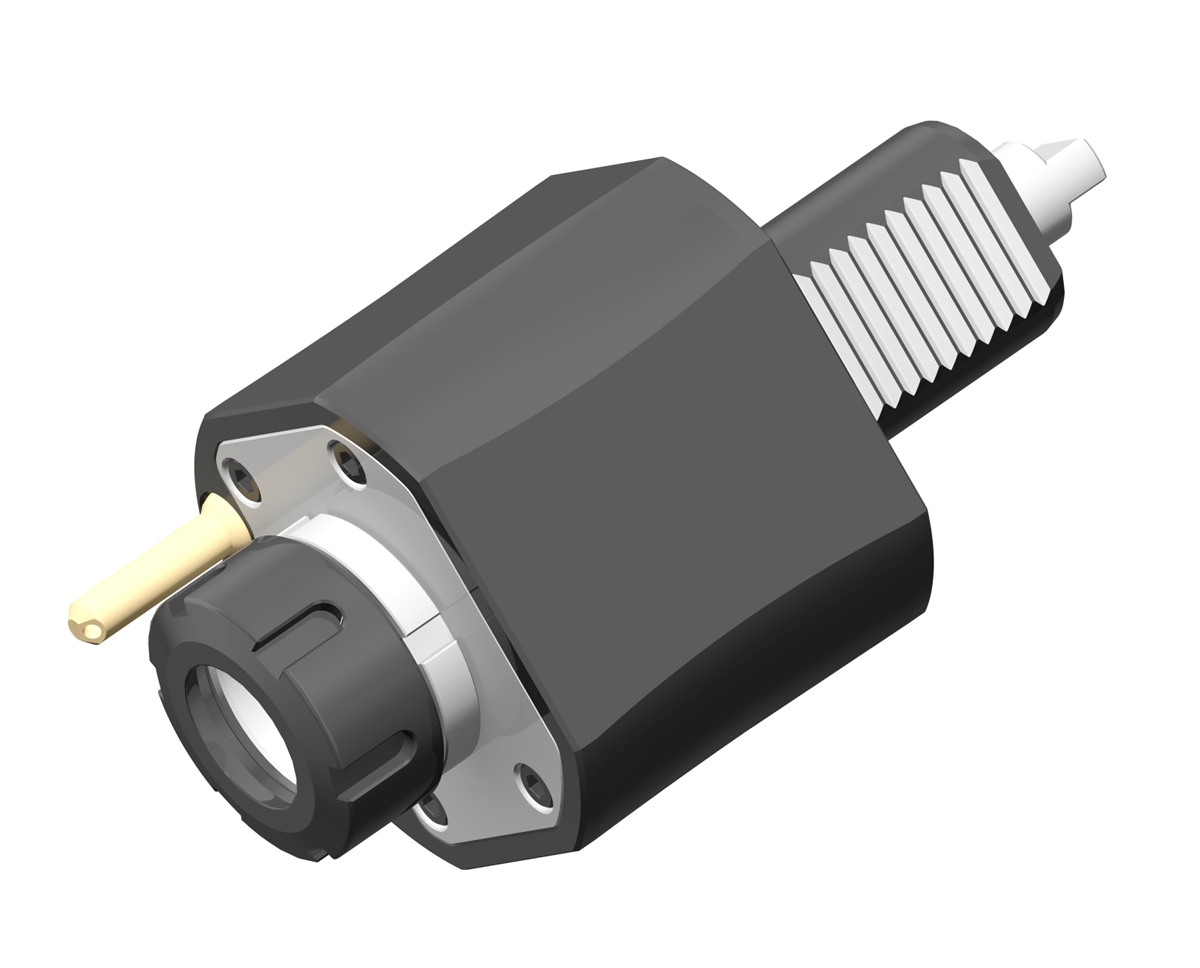

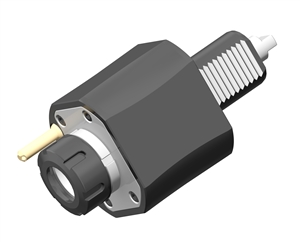

VDI 40, Straight Tool Holder, Duplomatic DIN 1809 Coupling, With Internal Cooling - 95, ER32
Product Code: NGT-1-40-121-32-2S
List Price: USD $1,942.01
Sale Price: USD $1,747.82
Savings: USD $194.19
Description
VDI Live Tool Holder
Duplomatic DIN 1809
NGT-1-40-121-32-2S
Micron Tooling
Live Tooling for CNC Lathe
Manufactured by Nova Grup SRL
Manufacturer's Warranty 1 Year including parts and service
Features
- Each NGT Tool Holder must pass tests for heating, vibrations, noise level, tightness on checking stand and is given a running in.
- Each NGT product which will fit your CNC lathe turret passed a stringent final measurement of dimensional and functional parameters.
- Noise level is reduced because the cyclo-palloid gear wheels have had a thorough machining, a controlled heat treatment and a final lapping.
- Final Quality Control is performed on proper measuring devices and it is assured a documented Measuring Protocol for each Live Tool Holder, performed on a 3D measuring machine.
- Each product is accompanied by a Quality and Conformity Certificate and a Factory Warranty of 12 months.
- Repairs and/or maintenance after warranty are provided by Machine Impex Canada Inc.
| Product Code | NGT-1-40-121-32-2S |
| Coupling Type | DIN 1809 |
| Direction | Straight |
| Tool Grip | ER32 |
| Internal Cooling | Yes |
| Weight | 4.9 Kg |
| Dimensions | |
| D | 40 |
| F | 95 |
| L | 53 |
| W | 80 |
| W1 | 86 |
ToolHolders produced by NOVA GRUP will fulfill your requirements for endurance, dimensional and functional precision. ToolHolders concept, materials and parts sustain a long range of tests on their functionality testing stands.
